1 INTRODUCTION

This section supplements the following portion(s) of the AIP:EHAM.

Due to the creation of a dual taxiway at the south-west side of the airport, major reconstruction works are carried out. This includes the R-apron, taxiway exits S1/S2 and the taxiways in that area.

Work will be carried out into the year 2027; in the period JAN-DEC 2025 the works are carried out in phases as described below. The actual date and time will be promulgated by NOTAM.

A new AIP Supplement will be published for additional phases.

2 CONSTRUCTION PHASES

PHASE 1 - 8:
Work is completed.

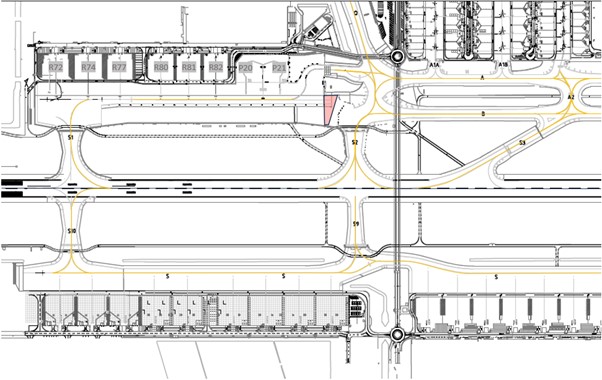

PHASE 25.0 (JAN-FEB 2025):
No work and no operational consequences. The availability is as follows:

• Remote holding positions P22 and P23: U/S.
• Entry/exit R-apron on TWY R moved to location P23.
• TWY S1 and S10: AVBL.

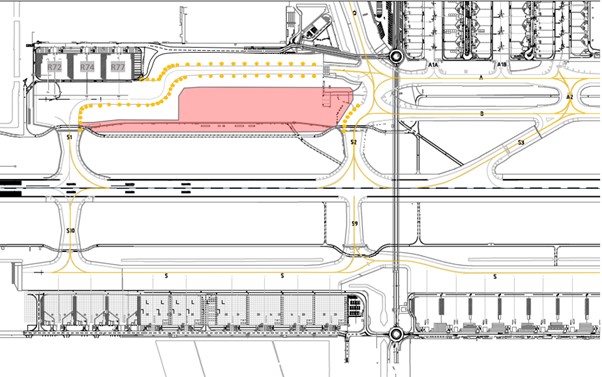

PHASE 25.1 (FEB-JUL 2025):
Work is carried out on former location TWY R. The availability is as follows:

• Remote holding positions P20-P21-P22-P23: U/S.
• Aircraft stands R80, R81, R82: U/S (withdrawn).
• TWY R replaced to former aircraft stands R80-R82 and remote holding positions P20-P23.
• Entry/exit R-apron on TWY R moved to location P23.
• TWY R MAX wingspan > 69 M guided by marshaller.
• TWY R no CL lights, if RVR 350 M or less marshaller guidance required.
• TWY S1 and S10: AVBL.

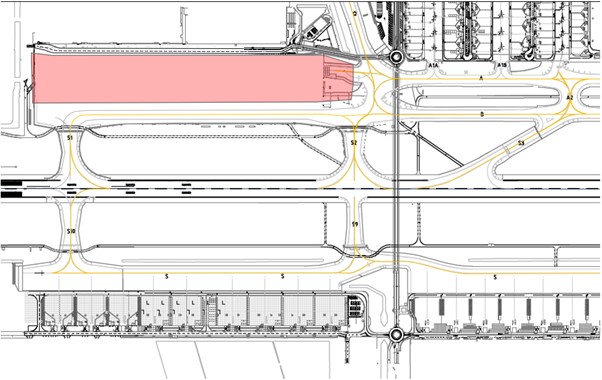

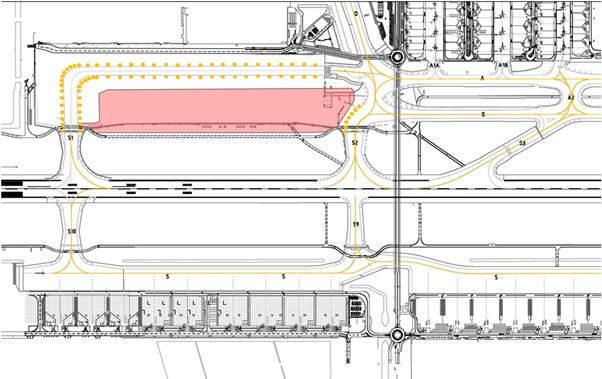

PHASE 25.2 (JUL-NOV 2025):
Work is carried out on former location TWY R. The availability is as follows:

• Remote holding positions P20-P21-P22-P23: U/S.
• Aircraft stands R71, R72, R73, R74, R77, R80, R81, R82: U/S (withdrawn).
• TWY R replaced to former aircraft stands R71-R82 and remote holding positions P20-P23.
• Entry/exit R-apron on TWY R moved to location P23.
• TWY R MAX wingspan > 69 M guided by marshaller.
• TWY R no CL lights, if RVR 350 M or less marshaller guidance required.
• TWY S1 and S10: AVBL.

PHASE 25.3 (NOV 2025 - JAN 2026):
Work is carried out on former aircraft stands R71-R82 and remote holding positions P20-P23. The availability is as follows:

• Remote holding positions P20-P21-P22-P23: U/S.
• Aircraft stands R71, R72, R73, R74, R77, R80, R81, R82: U/S (withdrawn).
• TWY R restored to former location.
• TWY R MAX wingspan > 69 M guided by marshaller.
• TWY S1 and S10: AVBL.

3 DOCUMENT CONTROL

REF AIP AD 2.EHAM-ADC, AD 2.EHAM-APDC.1, AD 2.EHAM-GMC.x.

Consult NOTAM for latest information.

AIP SUP 19/2024 is cancelled herewith.

ISSN: 0165-7291
